The Scenery is on the Wall

In preparation for the Fall Open House on November 11th and 12th, 2001, Barry completed the first scenery area on the railroad. Here you can see the 'wall' above the foyer, and the Lobato Bridge. In addition, a new 30 inch mining railroad was installed in the Silverton room, will runs back and forth using a customized loco and O gauge motor drive system.

<Back>   to the pictures page

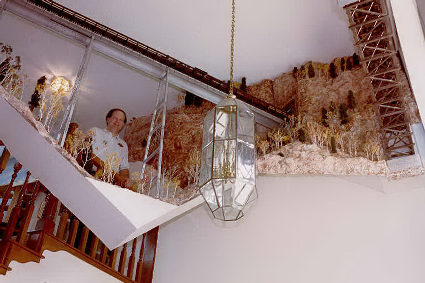

Barry and the finished scenery area, Nov.2001

Looking up from bottom of stairway, 16 feet to track

The "foyer"? - note the big window and outside view

The scenery on the wall, is 12-18 feet above the floor

The trestle bents and the footing under the bridge

Train from Silverton room creeps out on to Lobato

No picture can does this scene good justicee

Looking up from the "river", as 461 crosses over

Scenery below the bridge. Can you find the deer?

The footing area is two 2x8ft plywood sections in a 'V'

Looking up from the floor, just 16 feet below the trestle

Lobato trestle and highline's Howe Truss over the window

Loco 268 on the mid-level grade, and headed uphill

Note the retaining walls and details of tunnel lining

Main Panel, black is lower, yellow mid, red upper level

Rockwood mini-panel, for operating crews, switching

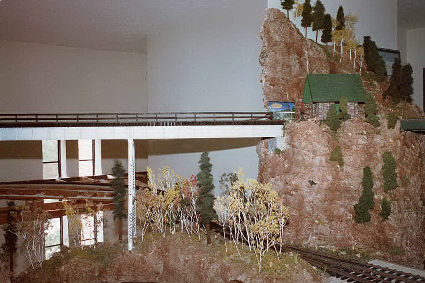

Scenery runs up to Lobato and Rockwood area

Lobato and spurs above, Rockwood area is below

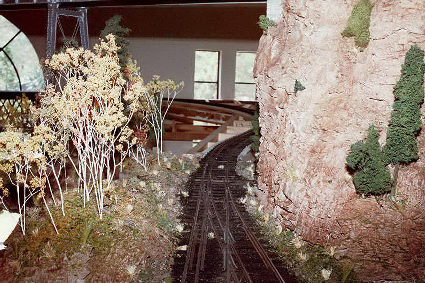

A cut leaving Rockwood, then out on to the High Line

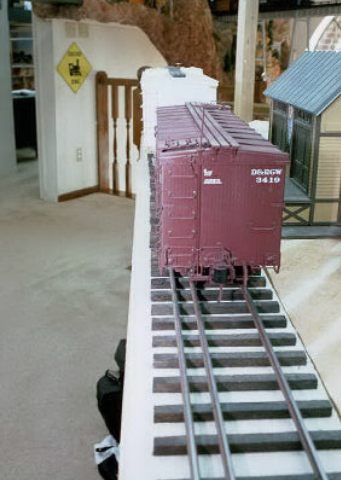

Dual Gauge: NG car up front, and a std gauge car behind

New mining tram, back and forth in Silverton room

The 30 inch gauge line, using an O gauge drive system





Page created on 12/11/01.
