The Lobato Bridge ( inital construction )
On Saturday, 10/21/00, the main support girder was
temporarily put in place and the mounting brackets
were installed. The suspended "base boards" were
installed, where scenery will be installed below
the bridge at a later date. The girder was later removed, so
track can be laid on it and the scenic work
can be done to it, on the work-bench. This bridge is 15 foot
long, and is 16 foot above the floor.
It is only supported on each end!
<Back>
to the pictures page
The girder is made of two L angle irons, is stuck in. Note the 12ft tall
ladder, 4ft below the girder.
|
Sting and boards were used to help determine the angle for the plywood base
boards.
|
Looking up from the bottom of the stairway, you see the string and boards
again.
|

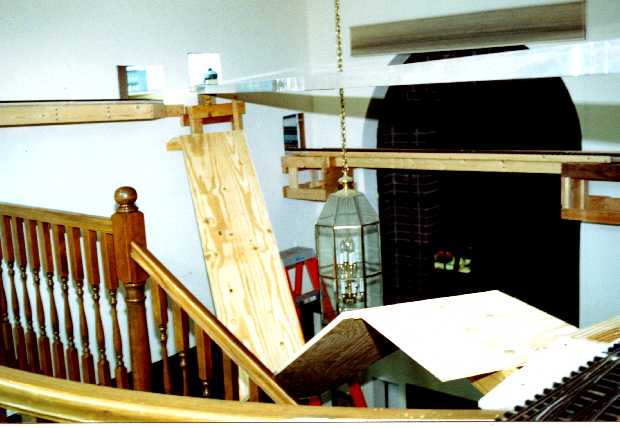

The 18in wide plywood sections, 80in and 82in long, are installed.
|
The bridge bents will come down to the scenery to be installed on these
plywood "base boards".
|
If we could just move that fancy light fixture... Duck your head when going
up or down the stairs!
|
